DE FIXTURE 600/1000W

products-OG-Series

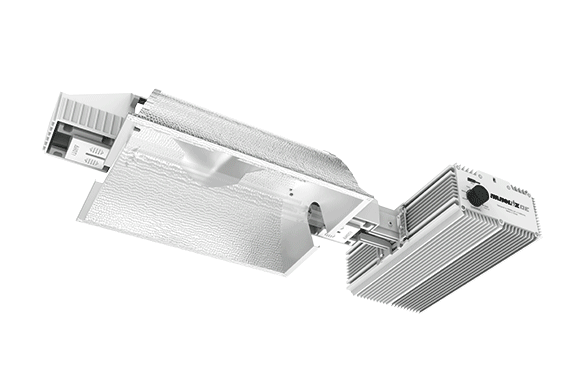

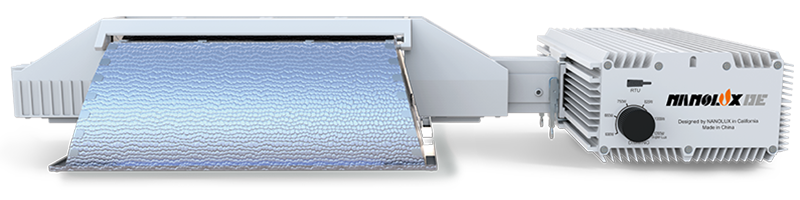

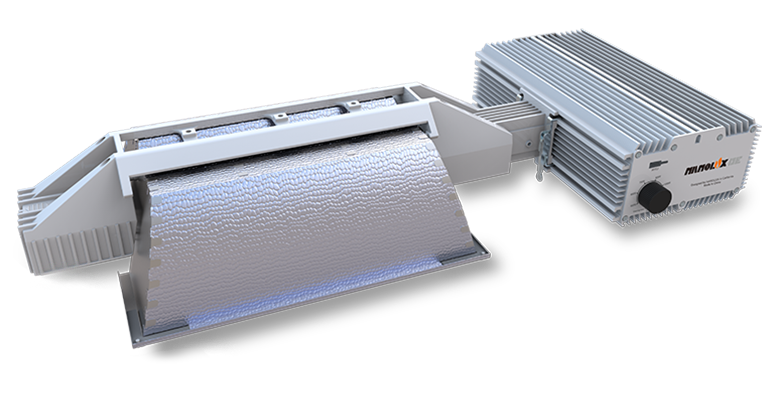

The Nanolux DE fixtures 1000W & 600W are state of the art adjustable horticultural quality fixture. They are designed to drive the 1000W & 600W Double Ended electronic high frequency HPS lamps. Professional electronic HPS lamps operate at very high frequency to prevent acoustic resonance and to optimize lamp life. The NCCS App system is also incorporated.

Product Manual Download

FEATURES

  • 97% reflective German aluminum reflector

  • 8% better light uniformity than the competition

  • Slow start, open circuit & low voltage protection

  • Includes MaxPar 2100µmol DE bulb

APPLICATION

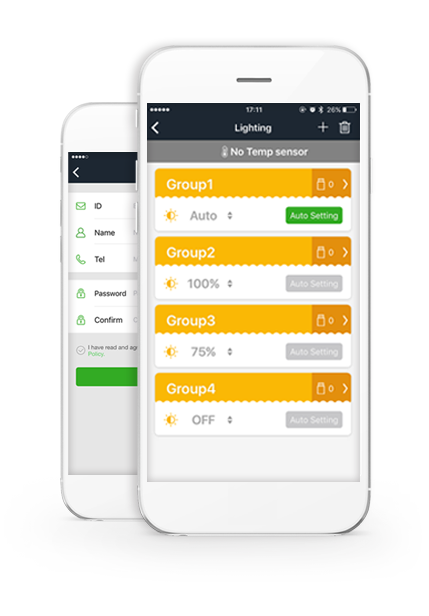

The NCCS APP is designed to provide a complete solution for the control of the lighting and environmental controls of the grow room.

NCCS APP Introduction

SPECIFICATIONS

  • Model1000W
  • Input Voltage208V-240V
  • Output Voltage200V-300V
  • Input Frequency50/60Hz
  • Output Power1200W Max
  • Power Factor≥0.99
  • Crest Factory≤1.7
  • THD≤10%
  • Dimming600W-660W-750W-825W-1000W-1200W(Super-Lux)
  • Strike LampDouble Ended Lamp
  • Output Frequency 100KHz-200KHz
  • Protection FunctionOver Temperature Protection; Over/Under Voltage Protection; Open/Short Circuit Protection;
  • Size(L*W*H)670*305*120mm  26.4*12.0*4.7 inch
  • Weight6.6kgs   14.6lbs
  • Model600W
  • Input Voltage208V-240V
  • Output Voltage70V-150V
  • Input Frequency50/60Hz
  • Output Power660W Max
  • Power Factor≥0.99
  • Crest Factory≤1.7
  • THD≤10%
  • Dimming300W-450W-600W-660W(Super-Lux)
  • Strike LampDouble Ended Lamp
  • Output Frequency30KHz-80KHz
  • Protection FunctionOver Temperature Protection; Over/Under Voltage Protection; Open/Short Circuit Protection;
  • Size(L*W*H)670*240*115mm  26.4*9.4*4.5 inch
  • Weight4.8kgs   10.6lbs
