LIGHTING FIXTURE

DE FIXTURE III

DE FIXTURE III

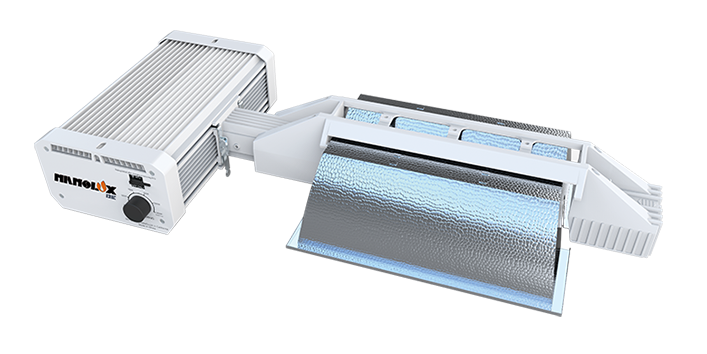

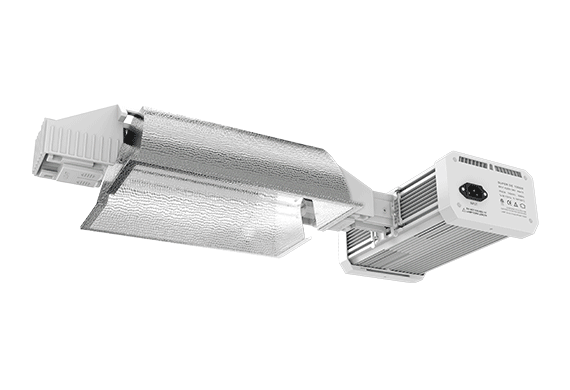

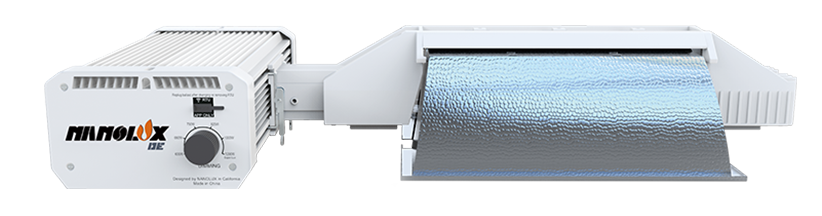

The Nanolux DEF has increased the standard 1150E to 1200W allowing the fixture to produce a class leading output. The components, like ceramic bulb receptacles, make the Nanolux DEF fixture the safest on the market. The Nanolux DE fixture is NCCS APP ready, meaning you will be able to control it wirelessly through the Nanolux Cloud Control System APP(NCCS APP).

Product Manual Download

FEATURES

DE FIXTURE III

  • Available in IOS/Android platforms

  • Over temperature/high/low voltage protection, open/short circuit protection

  • Drive double-ended high pressure sodium lamp

  • 3-year warranty

APPLICATION

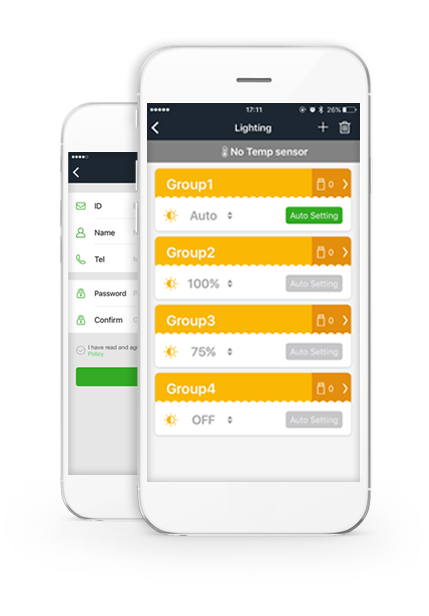

The NCCS APP is designed to provide a complete solution for the control of the lighting and environmental controls of the grow room.

NCCS APP Introduction

SPECIFICATIONS

  • Model 1000W
  • Input voltage 208V/240V
  • Output Voltage 200V/300V
  • Input Frequency50/60Hz
  • Output Power 1200W Max
  • Power Factor ≥0.99
  • Crest Factory ≤1.7
  • THD ≤10%
  • Dimming 600W-660W-750W-825W-1000W-1200W(Super-Lux)
  • Strike Lamp Double Ended Lamp
  • Output Frequency100KHz-200KHz
  • Protection FunctionOver Temperature Protection; Over/Under Voltage Protection; Open/Short Circuit Protection;
  • Size(L*W*H) 672*315*120mm  26.5*12.4*4.7 inch
  • Weight 7.0kgs   15.4lbs
  • Model600W
  • Input voltage 208V/240V
  • Output Voltage 70V/150V
  • Input Frequency50/60Hz
  • Output Power 660W Max
  • Power Factor ≥0.99
  • Crest Factory ≤1.7
  • THD ≤10%
  • Dimming 300W-450W-600W-660W(Super-Lux)
  • Strike Lamp Double Ended Lamp
  • Output Frequency30KHz-80KHz
  • Protection FunctionOver Temperature Protection; Over/Under Voltage Protection; Open/Short Circuit Protection;
  • Size(L*W*H) 672*240*120mm  26.5*9.4*4.7 inch
  • Weight 5.2kgs   11.5lbs
