CMH SERIES 630

products-OG-Series

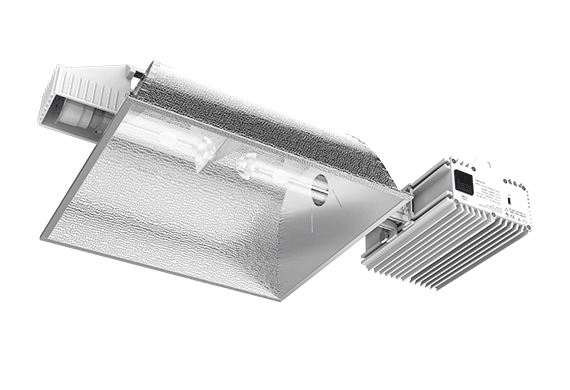

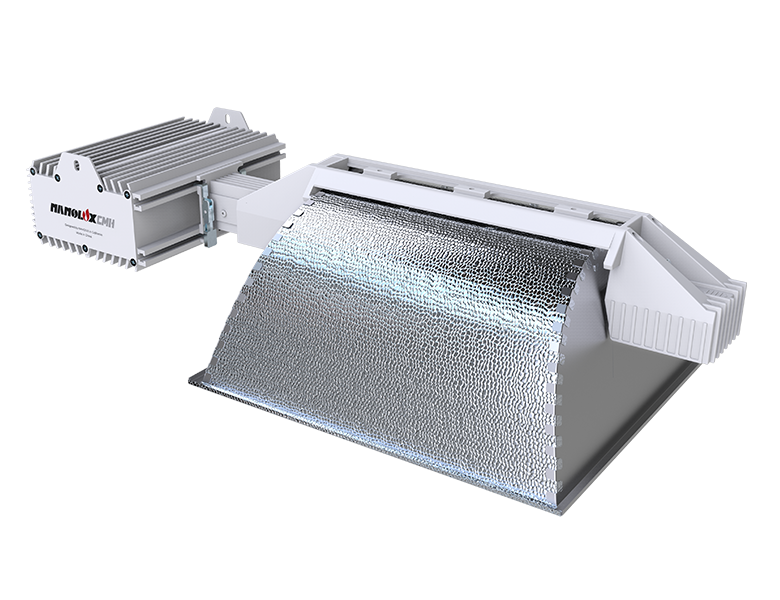

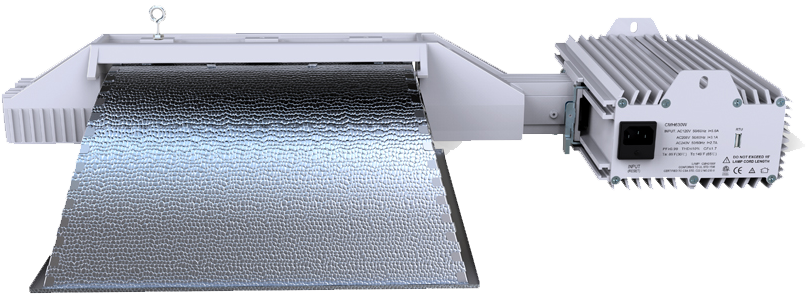

The CMH 630W Fixture hood is optically designed to give a balanced footprint and is perfect in larger grow environments such as commercial installations where lighting overlap can be accomplished. Uses a light weight, cool running Nanolux ballast the industry has come to trust.

Product Manual Download

FEATURES

  • 97% German reflective aluminum reflector

  • Drives 315W PGZX18 base CMH lamps

  • Lowest profile fixture on the market allowing for max plant height

  • Heavy duty die cast bridge will not rust

APPLICATION

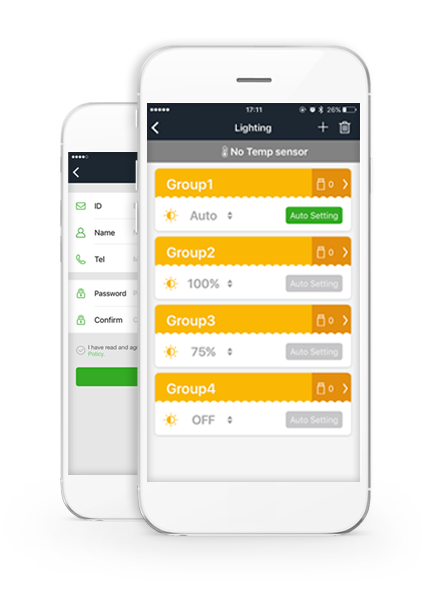

The NCCS APP is designed to provide a complete solution for the control of the lighting and environmental controls of the grow room.

NCCS APP Introduction

SPECIFICATIONS

  • Input Voltage 120VAC/208VAC/220VAC/240VAC/277VAC(Optional)
  • Output Voltage 80VAC-150VAC
  • Input Frequency 50Hz-60Hz
  • Output Power 630W Max
  • Power Factor ≥0.99
  • Crest Factor ≤1.7
  • THD ≤10%
  • Dimming None
  • Strike Lamp CMH 315W(2pcs)
  • Protection Function Over Temperature;Over/Under Voltage; Open/Short Circuit
  • Size(L*W*H) 700*295*210mm 27.6*11.6*8.3inch
  • Weight 5.5kgs 12.2lbs
