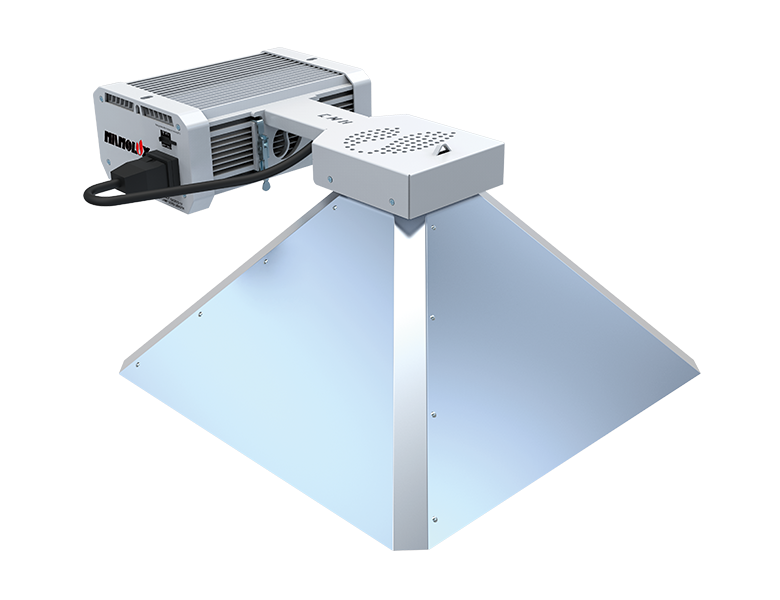

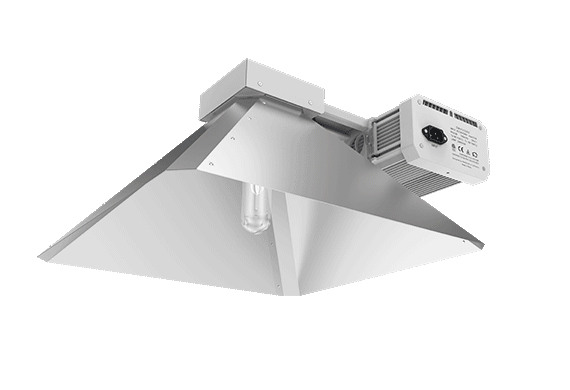

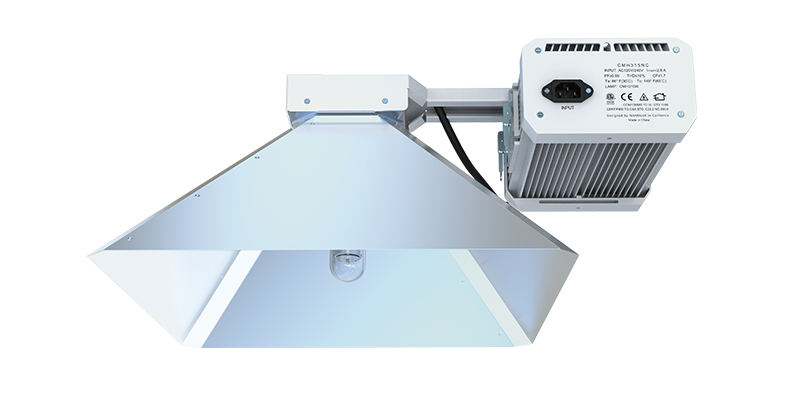

Ceramic Metal Halide (CMH), is becoming more popular in the horticultural industry. CMH 315 Fixture vertical mounting position provides an even-light footprint can be used with any 315W 3K or 4K horticultural CMH lamps from all leading quality brands. We have taken CMH technology and increased its operational efficiency, making the most comprehensive spectrum of light output for an HID fixture even better.

Product Manual Download


  • 97% German reflective aluminum reflector

  • Drives 315W PGZX18 base CMH lamps

  • ETL-listed

  • 3-year warranty

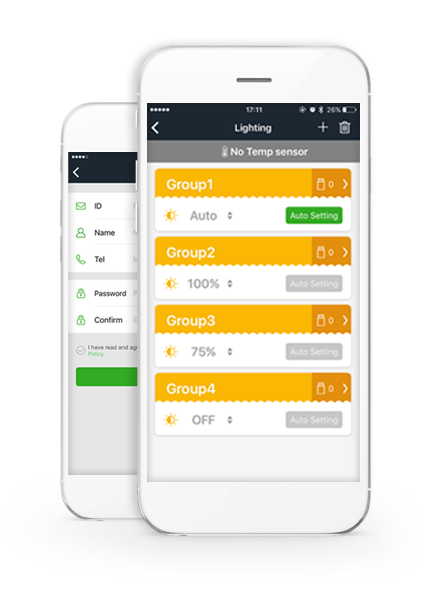

The NCCS APP is designed to provide a complete solution for the control of the lighting and environmental controls of the grow room.

NCCS APP Introduction


  • Input Voltage 120VAC/240VAC/277VAC(Optional)
  • Output Voltage 80VAC-150VAC
  • Input Frequency 50Hz-60Hz
  • Output Power 315W Max
  • Power Factor ≥0.99
  • Crest Factor <1.7
  • THD ≤10%
  • Dimming None
  • Strike Lamp CMH 315W
  • Protection Function Over Temperature;Over/Under Voltage; Short Circuit
  • Size(L*W*H) 554*420*243mm 21.8*16.5*9.6inch
  • Weight 6.0kgs 13.2lbs
