OG SERIES

products-OG-Series

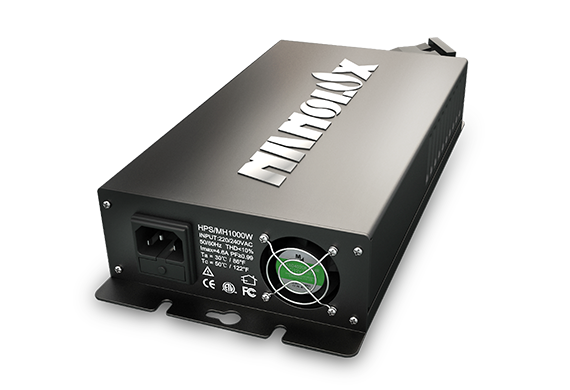

As the smallest, lightest, and smartest ballast on the market the, OG lives up to its name. We’ve taken the reliability and quality you’ve come to trust, and added smart ballast capabilities by making it NCCS compatible.

Product Manual Download

FEATURES

  • Available in iOS/Android platforms

  • Suitable for both MH & HPS bulbs

  • Random start technology

  • Soft start & soft dim for bulb longevity

  • Short circuit /overheat/lamp failure protection

  • 3-year warranty

APPLICATION

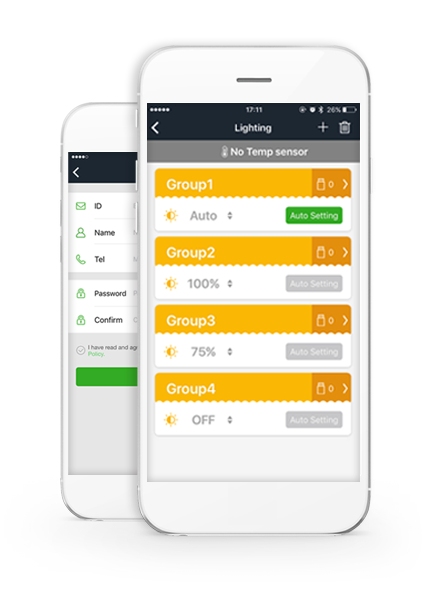

The NCCS APP is designed to provide a complete solution for the control of the lighting and environmental controls of the grow room.

NCCS APP Introduction

SPECIFICATIONS

  • Input Voltage Range 120/220/240VAC
  • Option 100/110/277VAC
  • Power Factor ≥0.99
  • Crest Factor ≤1.7
  • THD ≤10%
  • Operating Temperature -30℃(-22℉)-55℃(131℉)
  • Output Frequency: ≥30KHz
  • Protection Function Over Temperature;Over/Under Voltage; Open/Short Circuit
  • Strikes both HPS and MH lamps
  • Strikes bulbs from up to 50ft 5.5kgs 12.2lbs
